HISTORIC FIREARM OF THE MONTH,
January 2002:

Colt Logo
Flag of the Kingdom of Italy, 1848 - 1946

BRITISH MOBILIZATION, 1914
By the late autumn of 1914, it had become evident to all but the most callow of observers that Britain's involvement in the grand continental slaughter that became the First World War would be neither brief nor uncostly.  Equally evident was the fact that Britain's  professional army was simply too small for the rigors ahead, and would require substantial augmentation.  (Indeed, by the  end of the war, the total number of British killed in action (KIA) would far exceed the total number of troops initially sent to France in August 1914.)  While the manpower to flesh out the British forces could, and would be found, finding the weapons and ordnance with which to equip the swelling ranks was another matter entirely.  In many cases both domestic and imperial facilities were simply unable to provide the demanded production volume.  Consequently, in many cases, the British looked to not only to other sources for war materiel (most notably the United States) but to substitute standard equipment as well.  One example of this wartime policy can be seen in the adoption of the Remington/Eddystone manufactured Pattern 1914 .303 rifle.  Another is the case of the .455 caliber service revolvers.


At the beginning of the war, the .455 Webley Mk. V was the standard British service pistol, and was supplanted in 1915 by a product improved variant known as the Webley Mk. VI.  The top-break Webleys were well designed, reliable, and accurate arms whose only fault was that they could not be made rapidly enough to fill the demand created by a burgeoning British military.  To meet this demand, the British turned to the two foremost manufacturers of revolvers in the world, Colt and Smith&Wesson.  Both manufacturers immediately responded with variants of their large frame revolvers chambered for the British service .455 cartridge; Smith&Wesson with a version of the .44 caliber frame Hand Ejector and Colt

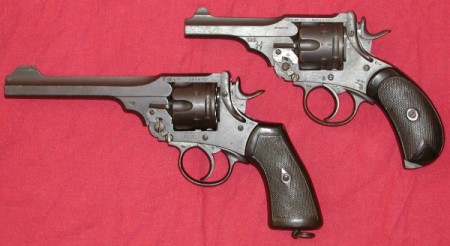

Webley Mk. IV and VI
British First World War service revolvers.  Top:  Webley Mk. IV  Bottom:  Webley Mk. VI.
with a version of the New Service model.  Both companies benefited enormously from the wartime contracts, producing more revolvers for the British military than almost any other customer to that time.  In many ways the British orders were windfalls that saved both companies from ruin.

COLT NEW SERVICE

Caliber: .455 Eley Overall Length: 10.83"
Weight, unloaded: 41 ounces Barrel: 5.5"

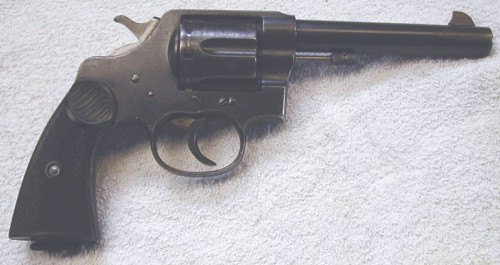

Colt New Service
.455 Colt New Service Revolver
(photo courtesy of Keith Whaley, Whaley's Gunsmithing)
A solid frame, double action design with a swing out cylinder, Colt's New Service model revolver was the company's large frame, heavy caliber offering from 1898 to 1944.  Proving to be extremely popular with military and law enforcement clients, the six shot revolver was offered in a bewildering variety of chamberings, including .38 Short Colt, .38 Long Colt, .38 Special, .357 Magnum, .38-40, .38-44, .44-40, .44 Smoothbore, .44 Special, .44 Russian, .45 ACP, .45 Auto Rim, .45 Smoothbore, .45 Long Colt, .450 Eley, .455 Eley and .476 Eley.  All the New Service variations were numbered in a single series from 0 through approximately 357,000.
The New Service was introduced in November 1898, and was available in seven chamberings:  .476 Eley, .455 Eley, .450 Eley, .45 Colt, .44-40, .44 Russian, and .38-40.  Factory barrel lengths were set at 4.5", 5.5", and 7.5", with the 4.5" barrels being markedly less common than the other two.  Standard finish was a mirror-polish blue with a color case hardened hammer, ejector rod tip, and lanyard swivel.  Screw heads and the trigger were a bright fire blue.

In 1909, Colt improved the original New Service lockwork.  The small leaf springs in the hammer strut and the cylinder locking bolt were replaced with small coil springs.  A small pivoted fly was eliminated from the from the rebound lever.  The net result of these changes was to strengthen the lockwork and reduce the chance of parts breakage.  Perhaps the most important product improvement was the addition of the "Colt Positive Lock," a hammer blocking safety in the form of a steel bar that slid between the hammer and frame that prevented the firing pin from striking the the primer if the hammer were inadvertently dropped while being cocked, or if the gun were dropped on a loaded chamber.  The only way this locking mechanism could be disengaged was by pulling the trigger all the way to the rear.  The improved 1909 lockwork is still used in modern Colt revolvers such as the Python and Detective Special.  New Service frames were altered to accept these improvements at approximately serial number 21,000.  The patent date for the positive lock, July 4, 1905, was added to the barrel legend at this time.  Additional improvements were made in the area of frame geometry starting in 1909 as well.  The triggerguard was made wider and was contoured into the frame in a series of streamlined curves.  The bottom of the crane hinge was covered, providing protection against dents.  The grip frame was strengthened by adding a crosspiece between the gripstraps so as to better resist bending when the gun was dropped.

The bulk of New Service production from the time of these improvements in 1909 until the middle of 1911 (23,000 to 53,000 serial number range) was earmarked for the Model 1909 US Army, Navy and Marine Corps revolvers.  Between 1911 and 1914, the majority of New Service revolvers went to fulfill law enforcement contracts.  For example, during this time, approximately 1,000 going to the Cuban "Guardia Rural," between 300 and 400 going to the Canadian Royal North West Mounted Police, and some 230 to the New York State Police.  However, the order that was to put the New Service "on the map" was not long coming.

In 1914, England found itself embroiled in the First World War and in desperate need of revolvers.  Large orders were placed with Colt, and 5.5" barreled New Services cast in the role of .455 British military revolvers began to surface in significant numbers around serial number 65,000 in 1914, and continue until the middle of 1917 with serial number 139,000.  The guns were sent in regular large shipments, as these excerpts from Colt shipping records indicate:


Date
No. Guns
SN Range
11-23-14
 450
69,000
12-17-14
650
70,000
12-30-16
400
125,000

Colt was to manufacture upwards of 55,000 .455 New Service revolvers for British and Commonwealth armed forces.  The majority of these were directly purchased by the British government and bear broad arrow government acceptance markings, as well as various inspection and proof marks.  Not all New Service

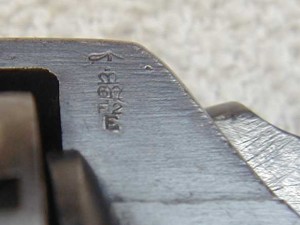

British Proofmarks
British military inspection and acceptance markings on the left rear frame of .455 Colt New Service revolver.
(photo courtesy of Keith Whaley, Whaley's Gunsmithing)
British Proofs

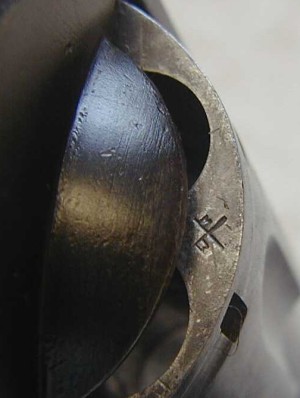

British proof marking on cylinder rear of .455 Colt New Service revolver.
(photo courtesy of Keith Whaley, Whaley's Gunsmithing)
British Proofmarks

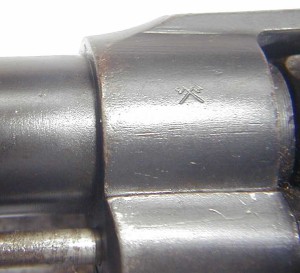

British proof marking on breech area of .455 Colt New Service revolver.
(photo courtesy of Keith Whaley, Whaley's Gunsmithing)
revolvers used by British forces in the war will bear official markings.  British officers were expected to furnish their own kit, with a sidearm being only one of the required items.  As a result, many British and Canadian officers purchased New Services commercially for use as their personal sidearms.  These personally purchased sidearms may bear personal engravings, but are devoid of official markings.  Most of the wartime New Service revolvers chambered for the .455 cartridge can be identified by a capital letter E stamped on the grip frame under the left grip.

The earlier British contract guns, specifically those manufactured and delivered in 1914 have the same highly polished, mirror-like blue of the regular commercial production guns.  As the contract progressed, the finish went first to a satin blue, and later to a flat military finish.  While in English service, some were refinished by a method known as "stoving" which involves painting the firearm in question with a black enamel and then baking the finish on in an oven.

Factory markings on British military New Service revolvers included:

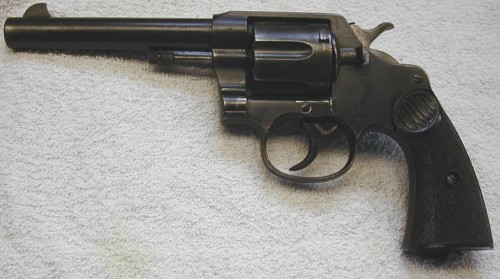

Colt New Service
.455 Colt New Service Revolver
(photo courtesy of Keith Whaley, Whaley's Gunsmithing)
Barrel top:
COLT'S PT. FA. MFG. CO. HARTFORD, CT. U.S.A.
PAT'D AUG.5, 1884. JUNE 5, 1900. JULY 4, 1905
Barrel left side:
COLT D.A. .455
Left rear of frame:
Rampant Colt
Serial number:
On crane and frame facing crane

SMITH & WESSON HAND EJECTOR

Caliber: .455 Eley Overall Length: 11.753"
Weight, unloaded: 38 ounces Barrel: 6.5"
Smith & Wesson .455 Hand Ejector, Second Model
In contrast to the Colt New Service, which had originally been offered in .455 among other chamberings, the .455 Hand Ejector (First Model) was specifically manufactured to meet the needs of a military organization.  In fact, the .455 Hand Ejector was the first N-frame revolver produced in large quantities by Smith & Wesson.

In the summer of 1914, Smith & Wesson's new president, Walter Wesson (D.B. Wesson's oldest son) received an urgent communiqué from the British government requesting the manufacture of a .45 caliber revolver that would chamber the

British .455 Mark II cartridge.  The factory's response indicated that Smith & Wesson could supply the revolver immediately, and a sample of the .44 Hand Ejector First Model chambered for the British cartridge was sent on to the British purchasing authorities.  The British responded that the gun was too heavy, and that the locking system in the extractor housing was too finely made and could easily be jammed by dirt.  However, before the gun could be redesigned, the British sent an additional communication indicating an immediate need for revolvers, and stating that the sample style would be acceptable until such time as the redesign work could be completed.

The factory began conversion of the .44 Special cylinders to .455 and made use of a set of .45 Colt barrels that had been produced for commercial sale.  In accordance with England's urgent request for revolvers, the first guns were completed on September 24, 1914.  Six days later, a lot of 250 had been built.  The production rate continued to increase, and by January 19, 1915, Smith & Wesson had completed 5,461 revolvers for the British military.

The basic design of the .455 Hand Ejector was identical to the .44 Hand Ejector First Model, having a 6.5" barrel and blue finish.  In the great hurry to produce the guns, the factory converted any unfinished frame on hand to the British caliber.  As a result, the first group of 666 frames was completed and serial numbered within the .44 Hand Ejector series.  The new production frames that had not been serial numbered were assigned a new serial number series beginning at 1.  This resulted in a duplication of serial numbers for the first 666 frames.

The .455 Hand Ejector built upon Smith & Wesson's triple lock system is known as the .455 Hand Ejector First Model.  The change from the first model type having the shrouded extractor rod, to the light weight barrel lacking the shroud (called the .455 Hand Ejector Second Model) began in January 1915 as the first of the new barrels and frames were being completed.  By the time this change occurred, the serial number series for the .455 Hand Ejector had reached 5,000, and the changeover from the heavy, lugged barrel to the lighter barrel with no lug takes place between serial numbers 5,000 and 6,000 as the factory used up the older parts.

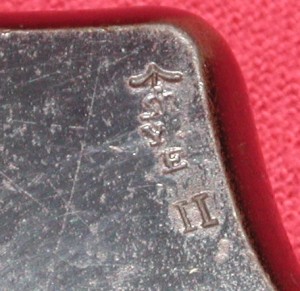

British Inspection Markings
Inspection and acceptance markings, left rear frame,  .455 Hand Ejector

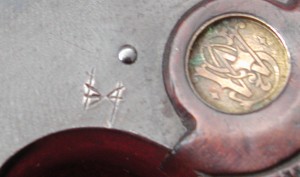

British Military Acceptance Markings
Acceptance markings, left side of frame, behind trigger  .455 Hand Ejector

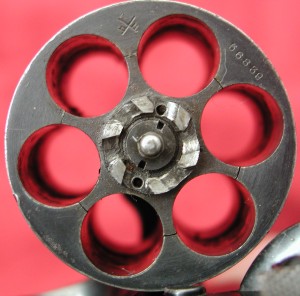

British Inspection Marking
Inspection markings, cylinder rear frame,  .455 Hand Ejector
By June 1915, Smith & Wesson was in full production of the second model .455 Hand Ejector.  Production figures for June indicate that some 1,450 guns were produced. By July production had increased to 3,460 guns, and by December it had reached 5,690 revolvers per month where it stayed for the remainder of the period of performance.  When production ended on September 14, 1916, Smith & Wesson had manufactured some 74,755 .455 Hand Ejectors, of which 69,755 were the Second Model type.

All of the .455 Hand Ejectors made for the Commonwealth forces were shipped from the Smith & Wesson factory to the New York City office of the Remington Union Metallic Cartridge Company, which was acting as the British purchasing agent.  The revolvers were then distributed to England and Canada, where they were inspected, proofed and accordingly marked.  In February 1916, Smith & Wesson manufactured an order of 724 of the military style Hand Ejectors chambered for the .45 Colt cartridge.  In April 1916, as the production of the .455 Hand Ejector Second Model was drawing to a close, enough

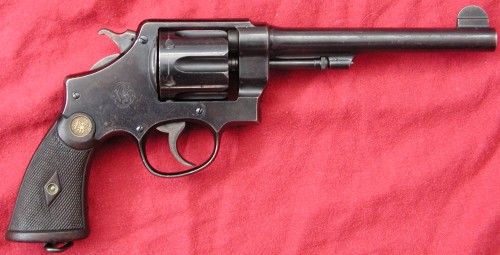

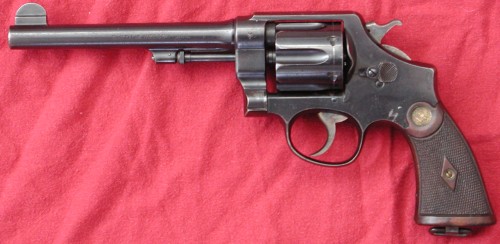

S&W .455 Hand Ejector, Second Model
Smith & Wesson .455 Hand Ejector, Second Model
parts were discovered to complete 691 First Model guns, which is why collectors may find First Model guns with serial numbers that do not correspond to the appropriate serial number ranges.

CONCLUSION
It is a a common historical misconception that the American contribution to the Allied war effort during the Great War were limited to large quantities of fresh but poorly equipped troops.  It is true that the many Americans found themselves under French or British command, and that many American units found themselves supplied with automatic weapons, artillery, and armor that derived from British or French sources.  Equally true however is the fact that much of the Allied war effort was paid for with American dollars, that Allied supplies were moved with American trucks, and that many of the aircraft flown by the Allied air forces were powered by engines made in the United States.  More to the point, American factories supplied tremendous quantities of small arms to the Allied armies.  Some were made to foreign patterns, such as the Berthier rifles made for the French by Remington-UMC, the Mosin-Nagant rifles made for the Russians by Remington and New England Westinghouse, and the Pattern 1914 rifles made for the British by Winchester and Remington (at both the Ilion and Eddystone plants).  Some, like the Colt New Service and the Smith & Wesson .455 Hand Ejector were indigenous American designs.  These arms served the British and Commonwealth armies well, and were highly regarded by the soldiers to whom they were issued.  Indeed, in testament to the American guns' durability, reliability and accuracy under the worst conditions imaginable, a large number of British regimental museums today show the American guns, and not the British Webley, as an integral part of a First World Soldier's kit.  The martial .455 Colts and Smith & Wesson revolvers are highly collectible, as both examples of the epitome of the art of the revolver, and important historical artifacts in their own right.

BIBLIOGRAPHY

Hogg, Ian and John Weeks, Pistols of the World, 3rd Edition, (DBI Books, Northbrook, Illinois: 1992)

Jinks, Roy G., History of Smith & Wesson, (Beinfeld Publishing, North Hollywood, California: 1991)

Murphy, Bob, Colt New Service Revolvers, (World Wide Gun Report, Inc., Aledo, Illinois: 1985)

Wilson, R.L., The Book of Colt Firearms, (Blue Book Publications, Inc., Minneapolis, Minnesota:  1993)


Pistols of the World, 3rd Edition is an out of print book, but is readily available from rare and out of print book search engines such as ABEbooks.com.  Please click on the image to order.
Pistols of the World

The History of Smith & Wesson  is available from the John C. Denner Company.  Click on the image to order.
History of Smith & Wesson

Colt New Service Revolvers is available from IDSA Books.  Please click on the image to order.
Colt New Service Revolvers

The Book of Colt Firearms is available from IDSA Books.  Please click on the image to order.
