DEVELOPMENT
OF ITALIAN SMOKELESS POWDER REPEATING RIFLES
In 1886, the
French Army introduced the world's first small bore smokeless powder repeating
rifle, the Lebel Model 1886. While much of the rifle's design was
pure nineteenth century, the combination of the revolutionary cartridge
and powder rendered the rest of the world's small arms obsolete overnight.
As the dust settled over Europe, it was evident that an arms race in the
field of infantry weapons was taking place. Germany quickly introduced
the Gewehr 88, Britain the Lee-Enfield, and Russia the Mosin-Nagant.
Italy was not immune from this frenzy, and her armament industry began
working zealously on a new rifle with which to arm the Italian forces.
In general, there were two main trends in developing cartridges for the
new smokless propellant; one favoring cartridges roughly 8mm in diameter
(Germany, Britain, Denmark, Russia), and the other favoring cartridges
in the 6.5mm class. Foremost among those nations favoring the 6.5mm
was Italy, introducing a 6.5x52mm cartridge in late 1890 that had been
developed by the government arsenal in Bologna. The Italian lead
was followed by Rumania (1893), Norway and Sweden (1894), the Netherlands
(1895), Luxembourg (1896), Japan (1897), Greece (1903), and Portugal (1904).
While all these cartridges were developed independently, and display differing
degrees of dimensional dissimilarity, their performance characteristics
were substantially similar, launching bullets of between 140 and 160 grains
at velocities between 2,300 and 2,500 feet per second.
| In 1888, by order of the Ministry of War, the Italian Army established an infantry weapons commission at the School of Musketry in Parma to determine the best design for a new small bore smokeless powder repeating rifle. Presiding over the commission was General Gustavo Parravicino, and the school's secretary was Major Benedetti, an artillery officer. The good major's presence was to prove something of a "ringer." Major Benedetti had been associated for many years with the Brescia weapons factory and was widely recognized expert in the both small arms and artillery design. Major Benedetti was also an early advocate of small caliber rifles with bore diameters between 5mm and 6mm. Due to his influence, experimental barrels in both 6mm and 6.5mm were eventually ordered from the Brescia weapons factory. |
|
A competition was announced and a number of designs rifles were submitted by both Italian and foreign inventors. Over the course of its existence, the commission was to test more than fifty different rifle designs and variations. Despite many excellent featured, none of these met with the commission's approval. In a stormy meeting of December 16 - 17, 1889 the Commission rejected the Mauser, Lee, Bertoldo and Vitali. Between April and September, ten more designs were rejected. On September 23, 1890, the competition was opened to the entire Italian arms industry. By late 1890, the finalized 6.5x52mm cartridge had been approved, and it was decided that only rifles featuring Mannlicher type magazines would be considered. The commission further stated that the Mannlicher type magazine found on the German Gewehr 88, whose clips could be loaded in either direction, was preferable to that of the Austrian type whose clips could be loaded in one direction only. As a result, only two designs were still in the running by early 1891: The Mauser-Mannlicher Tipo 2 and the Fucile Italiano No. 1.
At approximately the same time, Artillery Lieutenant Colonel Garelli had replaced Major Benedetti as secretary of the Commission. Colonel Garelli's contribution was inclusion of "gain-twist" rifling in the design. Barrels with gain twist rifling have a relatively slow twist rate near the chamber that gradually increases in pitch as it approaches the muzzle. For example, while a conventionally rifled bore might have a pitch of one turn in seven inches for the entire length of the bore, a gain-twist barrel might start out at one in twenty near the chamber, be one in thirteen along the barrel's midpoint, and be one in seven near the muzzle. The advantage gained through the use of gain-twist rifling was a lower pressure and temperature in the throat area, and thus longer barrel life. Four groove gain-twist rifling with a pitch of one in nineteen at the breech and one in eight at the muzzle was used in all Carcano rifles produced between 1892 and 1938. The Commission also adopted a bullet jacketed with "maillechort." Receivers were to be manufactured from very high quality "compressed steel," which had been developed by the Kladno Company of Prague.
A number of bolt designs were considered, and and a competition was held with an entry deadline of December 31, 1891. Despite earlier rejection of their proposed designs, both Mauser and Mannlicher competed, and were supplied with samples of the new 6.5mm cartridge and standard rifled barrels (Gain twist was to be kept a military secret well into the twentieth century.) By this time 45 more rifles designs had been submitted, but only Italian made rifles were considered. All four state arsenals (Terni, Brescia, Torre Annunziata and Torino) submitted candidate designs, and in early 1892 the Commission rendered a decision. Perhaps compromise is a better description of the Commission's findings than decision, as two rifles were chosen, The Mauser-Mannlicher Tipo 2 and the Fucile Italiano No. 1.
The Tipo 2, developed at the Terni arsenal was little more than a modified Gewehr 88 with quadrant sights, no barrel jacket and chambered for the 6.5mm round. The Fucile No. 1 was designed by a design group headed by Lieutenant Colonel (Chief Technician) Salvatore Carcano from the Torino arms factory (Fabbrica Nazionale d'Armi de Torino). Additional development was undertaken to combine the best features of each rifle; the receiver, bolt, and barrel of the Carcano rifle was to be combined with the magazine of the Mannlicher. Licensing fees amounting to some 300,000 lire were paid for the right to use features found on the Mannlicher rifle. The Mannlicher magazine used an en-bloc clip that held six cartridges (the 6.5mm's smaller bore and case diameter contributed to this "high capacity") and could be inserted from either end.
On March 4 - 5, 1891 Italy adopted the Mannlicher-Carcano rifle as the Fucile di Fanteria Modello 1891 (Infantry Rifle, Model of 1891). Two carbine variants were soon adopted. The Moschetto Modello 1891 (Carbine, Model of 1891, commonly referred to as the "cavalry carbine" owing to its folding bayonet) on June 9th 1893, , and late in 1897 the Moschetto Modello 1891 per Truppe Speciali (Carbine, Model of 1891 for Special Troops).
The Carcano was to serve Italy well, and essentially unmodified, for more than fifty years, and in in auxiliary capacity, for more than seventy. Only very minor changes were made to the basic design, the extractor being one of the most significant. In 1912 the extractor, which had been mounted through a slot in the the center of the lower locking lug on the bolt was changed to a position just above the lug. While both systems served well, replacement of the extractor is simplified on the later bolt, as is manufacture. The early bolts may be found in any Carcano as a replacement and are commonly referred to as "split lug extractor" bolts.
CARCANO
ACTION AND MECHANISM
The Carcano
is a straight forward bolt action that is both rugged and well suited for
military use. The receiver begins as a forging which is milled and
machined to final dimensions. The Carcano has a large receiver ring
(1.335" in diameter) with a small projection on the underside forming a
recoil shoulder. The inside of the receiver ring is threaded to accept
the barrel shank and has a thin collar in the center, against which the
breech end of the barrel abuts. The barrel breech is flat except
for a thin ring which fits inside the receiver collar and around the head
of the bolt. The rear of the receiver ring is milled to form locking
lug recesses. The left receiver wall is much higher than that on
the right, but lacks a thumb notch. A long opening is milled in the
bottom of the receiver for the magazine. The rear end of this opening
is wide enough to accept both the cartridges and the en-bloc clip, while
the front end is just wide enough to accept the body of the cartridge.
The forward edge of the opening is angled toward the chamber to form a
feed ramp which ensured both positive and reliable cartridge feeding.
The receiver is of the split bridge type, with a tang extending some 2.5" to the rear. The fire control mechanism is mounted below the receiver bridge and tang. The sear is attached to the receiver by and pivots on a pin mounted transversely through the bottom of the receiver bridge. A projection on the rear of the sear projects upward through a hole in the tang into a groove where the sear can engage the cocking piece on the bolt. Sear tension is maintained by a coil spring that sits between recesses in the front of the sear and the receiver. The trigger is attached to the sear and pivots on a pin through the sear. The trigger's upper arm bears against the bottom of the receiver and has two humps which yield the rifle's two stage pull.
The ejector is a collared pin with a blade shaped head, positioned over and inside the sear pin and extending upward through a hole in the receiver. A long tapering groove is milled into the front half of the bolt body to allow the ejector to gradually rise, as the bolt is opened, to a height where it will contact the head of the case and eject it from the action. It is a very simple and very efficient arrangement. The bolt stop is just as efficient and simple. It is a bar extending upward through a hole in the bottom right side of the receiver which projects into the right locking lug raceway in the receiver bridge. The lower portion of the bolt stop is attached to an arm on the trigger. Pulling the trigger to the rear lowers the bolt stop so that the bolt can be removed.

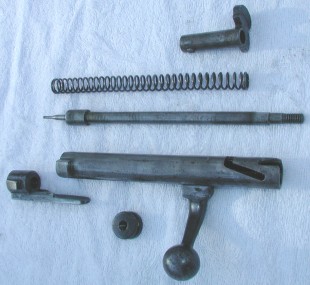

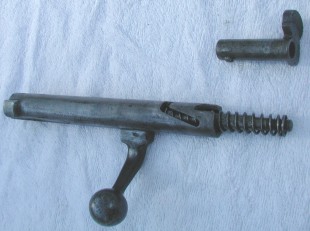

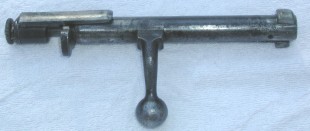

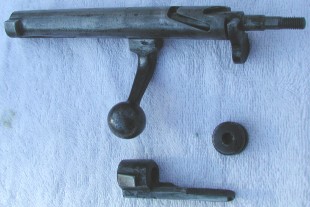

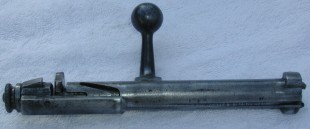

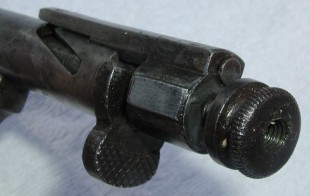

The bolt handle
is located near the center of the bolt, and when the bolt is closed and
locked, the heavy rectangular base of the bolt handle sits forward of the
receiver bridge and acts as a safety lug. The bolt has dual opposed
locking lugs, and the bolt face is recessed for the cartridge rim.
The rim of the recess is cut away for a quarter of the circumference to
allow clearance for the extractor hook. Another quarter is cut away
beyond the bottom of the extractor hook to enable the cartridge to snap
under the extractor during feeding, providing a "controlled feed" that
avoids double loading. The extractor itself is a single piece of
spring steel about two inches long, and fits tightly into a dovetail in
the forward portion of the bolt. A projection under the front end
of the extractor fits into a slot in the bolt, and prevents the extractor
being pulled from the bolt during operation.
|
|
|
|||
|
|
|

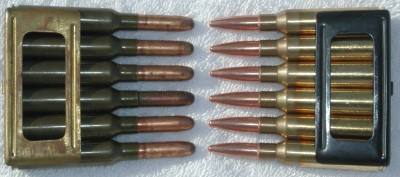

The action is held in the stock by two guard screws which pass through holes in the guard/magazine and thread into holes in the receiver. There is a very small recoil lug on the receiver, which alone would be wholly inadequate to absorb and distribute recoil if it was inlet directly into the stock. The Carcano uses a a t-shaped bushing and spacer through which the forward guard screw passes. The top of the T is a heavy metal bar about 1.2" long and .4" deep, with the top grooved to take the small lug on the receiver. With the t-bushing bedded into the stock, and anchored between the triggerguard tang and the receiver by the guard screw, the action is firmly anchored into the stock. The triggerguard/magazine is formed from a single piece of steel, with a wide, large trigger opening. The follower arm pivots on a pin through the lower front of the magazine, and is given upward tension by a flat spring dovetailed into the magazine housing. The bottom front half of the magazine housing is closed, the rear being open for ejection of empty six-round en-bloc clips. The clip is held in place by the clip latch, and can be released by pressing the clip latch located in the front of the triggerguard bow.

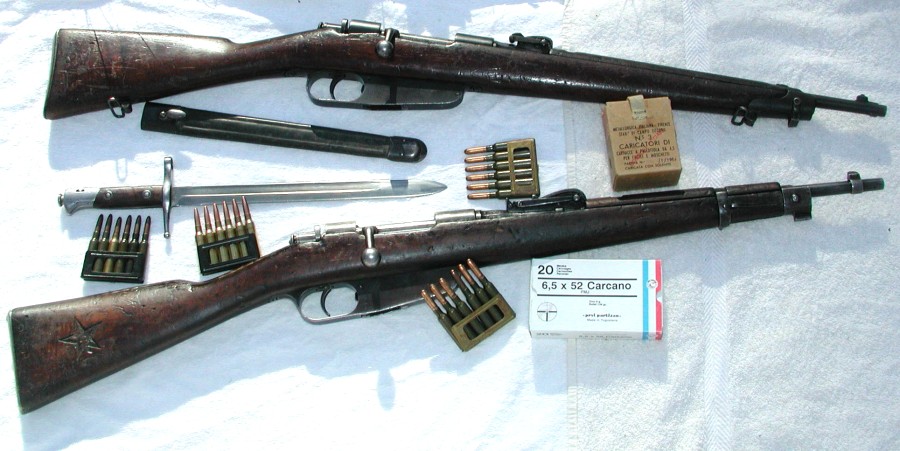

CARCANO CARBINES

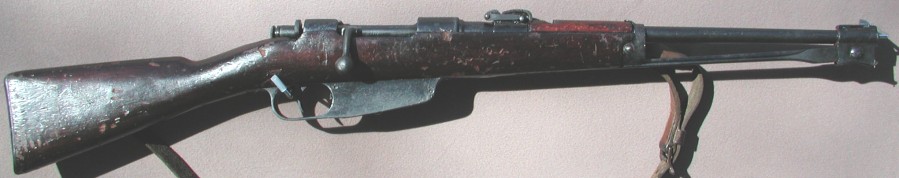

Model 1891 Cavalry Carbine (Moschetto Modello 91 da Cavalleria)
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Early Cavalry carbine bolts featured a split lug extractor, where the extractor was positioned in a cut out in the lower front locking lug. In 1912 this was changed, and the extractor was mounted slightly above and curving down past the front of the lug. Both systems were quite functional, and many Carcanos are still found with split lug extractor bolts. A handguard was added sometime after 1912, and most M91 Cavalry carbines appear to have been retrofitted with a hand guard. (Examples without a hand guard are quite rare.) As with the M91 rifle, the Cavalry carbines were chambered for the 6.5x52mm and manufactured with gain twist barrels. Initial production was undertaken by Brescia Arsenal and earliest observed serial number is |

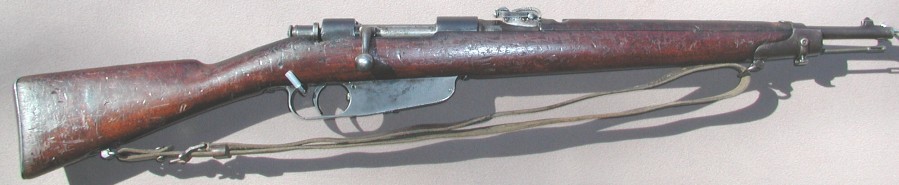

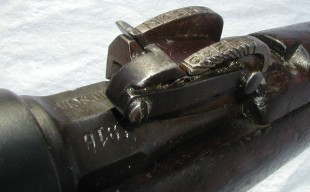

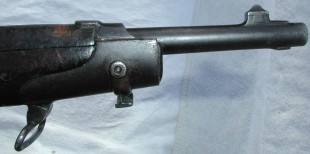

Model 1891 for Special Troops (Moschetto Modello 91 per Truppe Speciali)
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

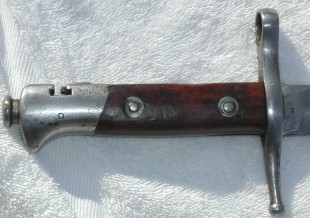

| clockwise around the axis of the barrel. The release button is located to the rear of the pommel; the bayonet is removed by pressing the button inward and rotating the bayonet counter clockwise. Ostensibly, the design was implemented to prevent an enemy soldier from snatching it off the rifle in hand to hand combat. Of course, if the enemy soldier is close enough to grab your bayonet's release mechanism, you've got other worries. Later production M91 TS carbines used a modified bayonet lug that took the standard M91 rifle bayonet. |
|

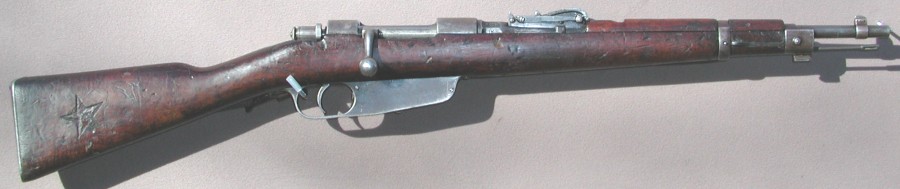

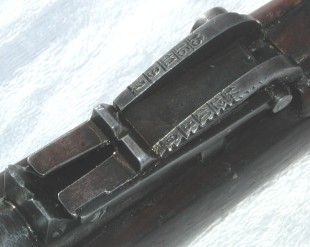

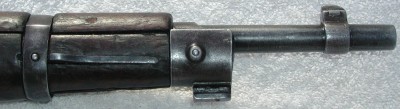

Model 1891/24 (Moschetto Modello 91/24)
 |
|
|
|
|
|
|
|
|
|
|
|
|
Some M91/24's
will be found with a barrel extension added to the muzzle to make the overall
barrel length exceed eighteen inches. In 1945, the law required rifle barrels
had to be at least eighteen inches long. Consequently, to make Carcano
carbines legal the extension had to be added. Later the law was changed
to sixteen inch minimum for rifles. The muzzle extension will identify
a rifle as a World War Two bring back or a very early import. In
Bavaria after the war, some M91/24's were used as police carbines. These
are marked on the left side of the receiver in large letters, BAVARIA POLICE,
BAVARIA RURAL POLICE, and are not very common.
|
|
|
The M91/24 uses the standard M91 bayonet. Sling swivel variations include, dual, side only and bottom only. Side swivels use a narrow sling, 7/8" wide. Bottom swivels use a wide sling, 1 1/4" wide. (Original wide slings are very rare.)
Model 1891/28
(Moschetto Modello 91/28)
(follows
91/24 pattern)
|
|
|
|
|
|
|
|
|
|
|
|
91/28 barrels
are dated between 1928 and 1938 (markings are 28 to 38). The 91/28's were
produced by Terni, Gardone, Beretta, FNA-Brescia, Lorenzotti Brescia and
MBT (Metallurgica Bresciana). There is a variation of the M91/28
which has a grenade launcher attached to it, it is called "Tromboni Launchi
Bombe" or "Tromboncino Lanciabombe Modello '28". 1929 saw the start
of stamping the Fascist date on some Carcano barrels, anno VII, seventh
year of Mussolini's government, and 91/28's produced after this date are
so marked. Many M91 TS carbines were upgraded to M91/28 specifications.
These can be identified by being made by Brescia between 1897 and
1919 and the barrel stops for the earlier side mount TS bayonets. The conversions
use the M91 type bayonet.
CONCLUSION
The Carcano
is one of the most underrated and under-collected military rifles available
today. Part of this is due to rumors about the Carcano's poor accuracy
or the poor quality of the steel used, and part due to the relative lack
of interest in Italian military history. These rumors are universally
false. Carcanos were made from materials of extremely high quality,
and can boast a history of technical innovation that is unmatched by any
other design. These innovations include controlled feed (not adopted
by Mauser until 1896), an action that cocks on opening (not adopted by
Mauser until 1898) and the use of gain twist rifling. Indeed, the
Carcano can boast the longest unaltered service life of any bolt action
rifle; the Model 91 rifle soldiered from 1891 to 1943, an astounding fifty
two years, and in certain parts of the world, continues to serve!
The strength and workmanship of the Carcano action is beyond doubt. We checked headspace on four different carbines and two long rifles, all of which had seen long and arduous service. Despite their age, number of rounds fired, and the adverse conditions of their service lives (they were First AND Second World War veterans!), none of the bolts closed on a NO-GO gauge. As an aside, checking the headspace dimension on a Carcano can be challenging, as neither of the major gauge manufacturers (Clymer and Forster) offers gauges for the 6.5x52mm as a standard item. However, Clymer Manufacturing will manufacture a set of specialty gauges in any desired caliber at a cost of $45.00 per gauge. We ordered a set of 6.5x52mm headspace gauges from Clymer Manufacturing in the GO (1.6821") and NO-GO (1.6881") sizes. Neither 6.5x52mm ammunition nor the headspace gauges are made to specifications laid down by the US based Sporting Arms and Ammunition Manufacturer's Institute (SAAMI). Rather, the specifications are those set by the Commission Internationale Permanente (CIP). In Europe proof houses, or testing facilities for firearms and ammunition, have set European standards since the 1800s. The CIP is an international association of proof houses. That being said, it is also worth noting that the CIP and SAAMI are working towards the development of international standards with the goal of interchangeable SAAMI and CIP standards.
In addition
to these technical factors, the Carcano is an excellent field for both
novice and veteran collector. There are two long rifle variants,
more than half a dozen carbine variants, several bayonet types, three chamberings
(6.5mm, 7.35mm, and 7.92mm), and a plethora of subvariants. The rifles
are all well marked with proof and inspection stamps, and relatively inexpensive.
Currently they are widely available from both wholesalers and retail channels.
Indeed, there is little more to say than Avante amici!
